Real-time Playback via Configuration Wizard

Configuration Wizard

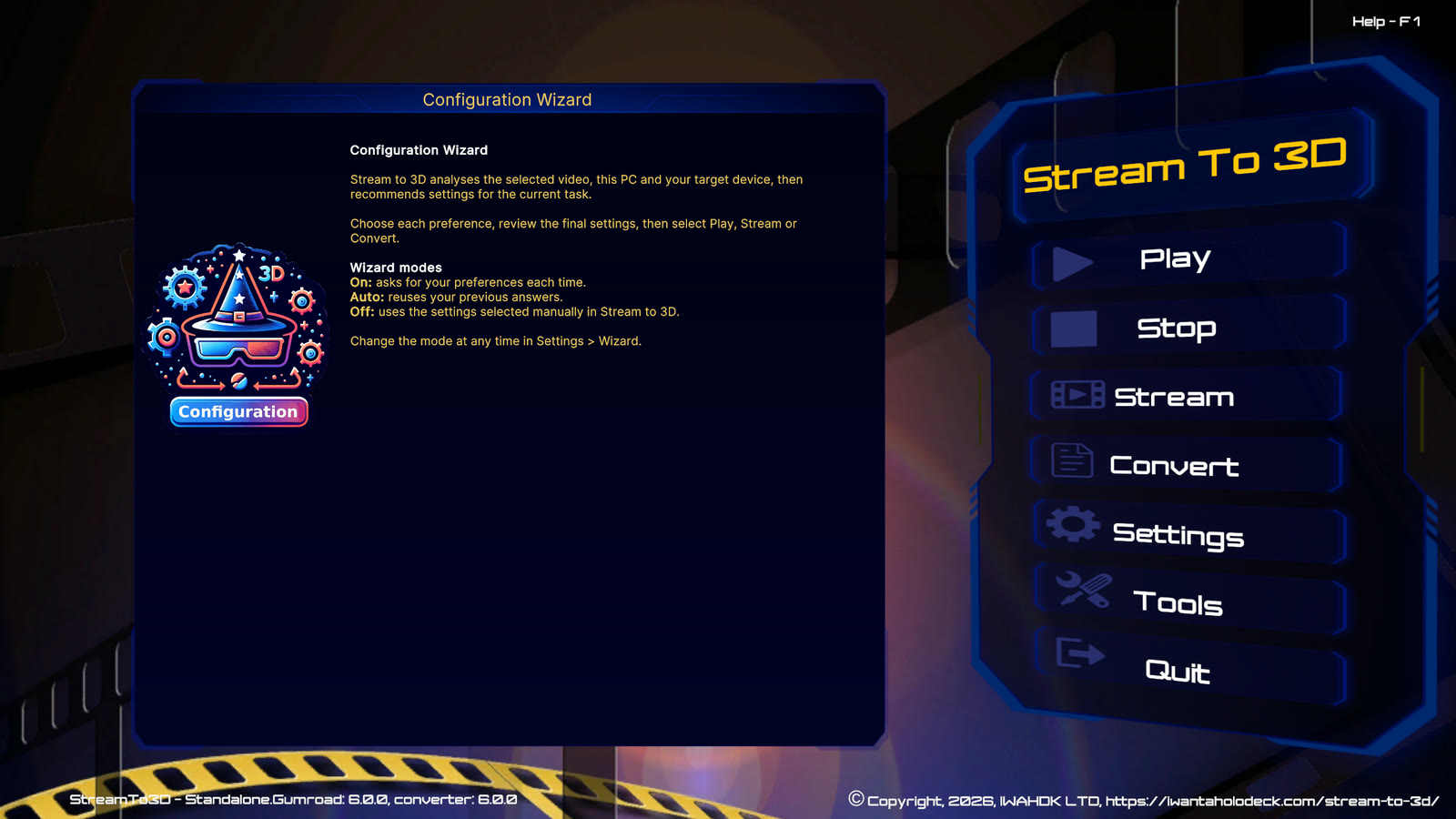

The Configuration Wizard guides you through setting up the optimal 3D viewing experience. The wizard is designed to analyse the characteristics of your selected video, system's performance, and target device, as well as taking account of your selected preferences, thus ensuring that your experience is customised to your system and requirements. Experienced users may choose to disable the Wizard completely and configure Stream to 3D manually, or use the Wizard in auto mode (which remembers your previous Wizard preference selections). You can control the Wizard behavior via the Settings/Wizard menu option.

Real-time Playback with Configuration Wizard Enabled

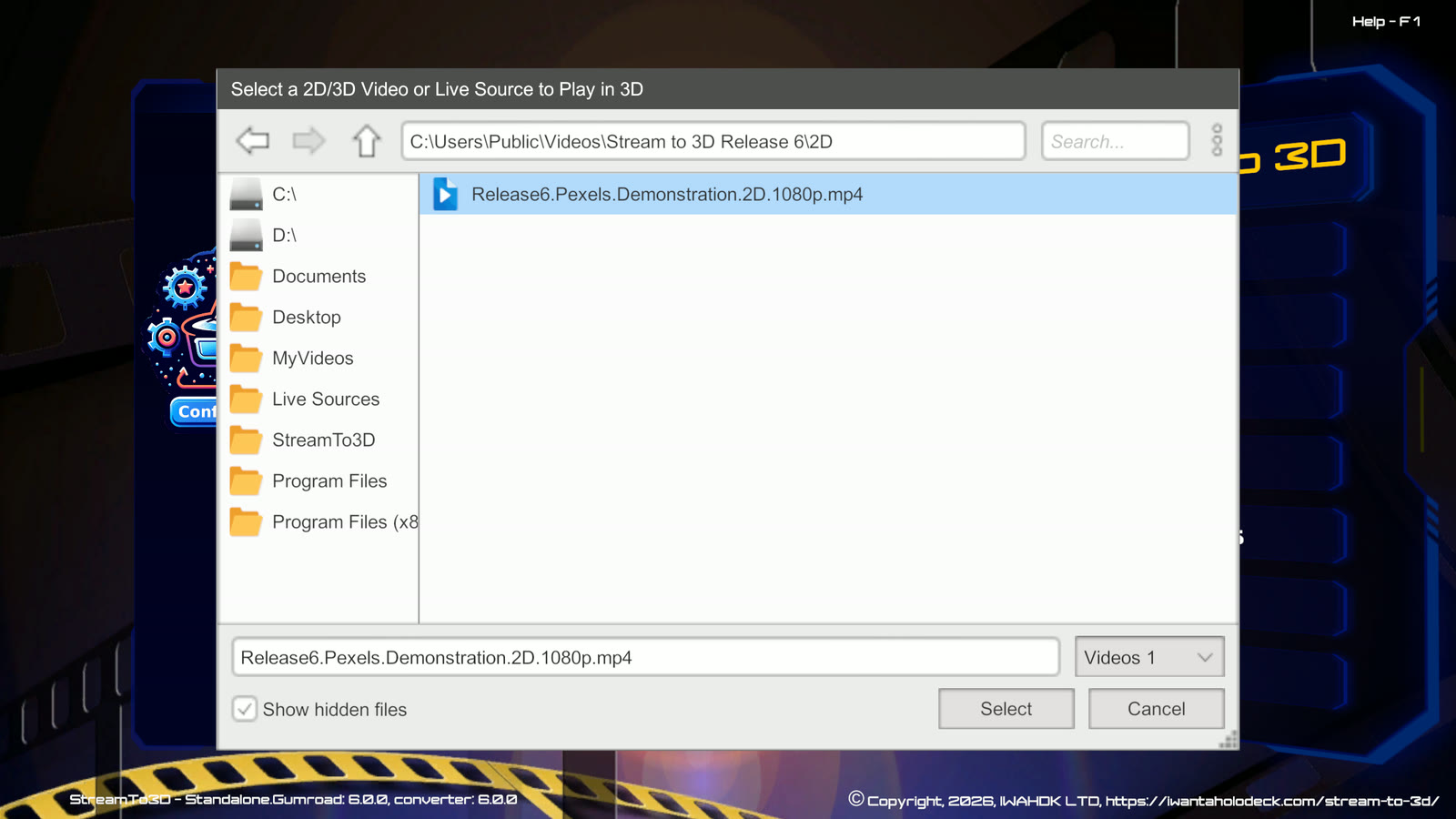

Clicking the Play button in the Stream to 3D main menu will prompt you to select your 2D source video to convert and play:

The Wizard will analyse the video and your system and provide high-level notes and warnings on anything that you should be aware of:

It will also optionally allow you to see meta data details on the video that you are about to convert and system performance metrics:

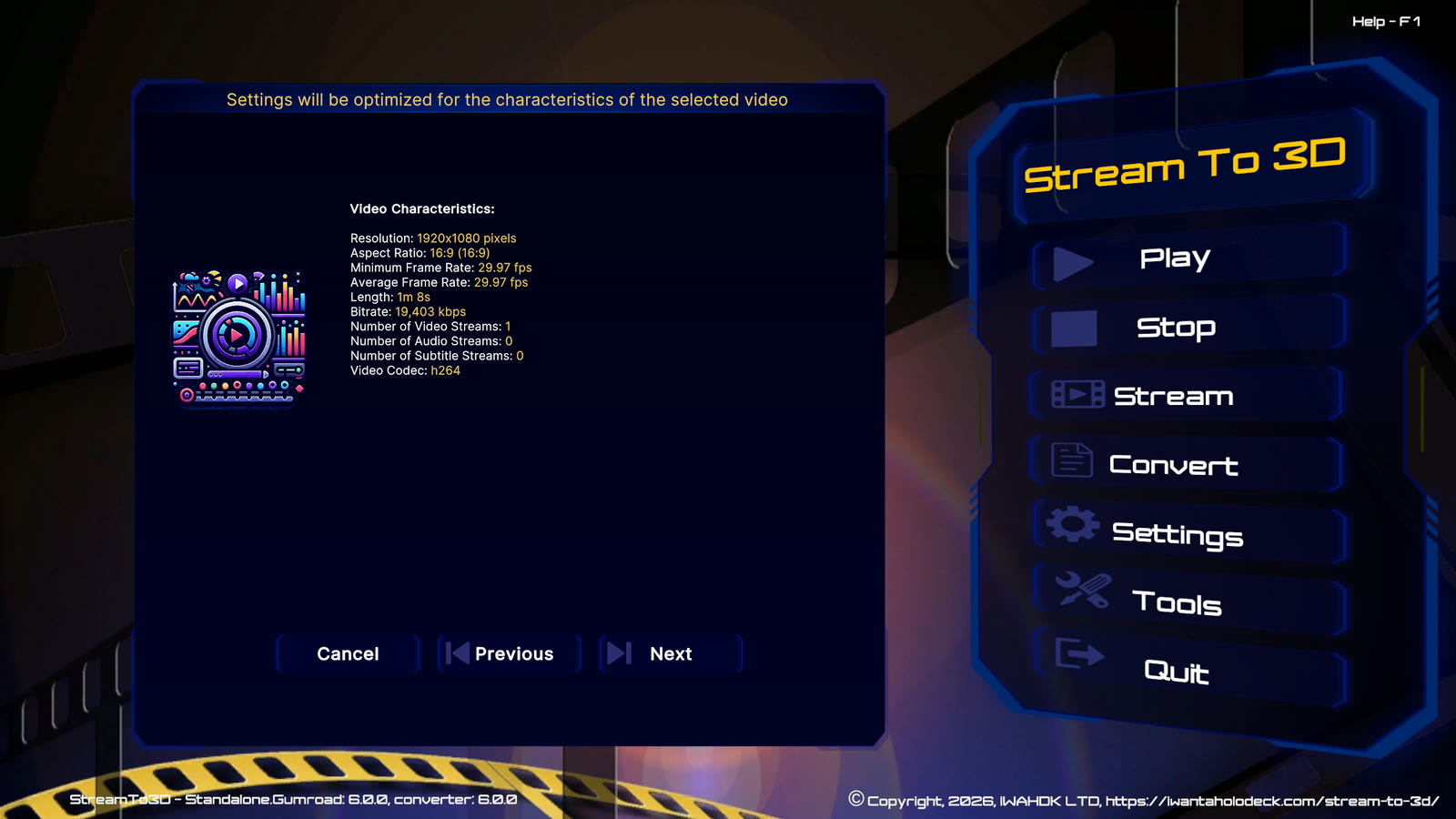

An example of the video meta data displayed is given below:

An example of the system performance metrics displayed is given below:

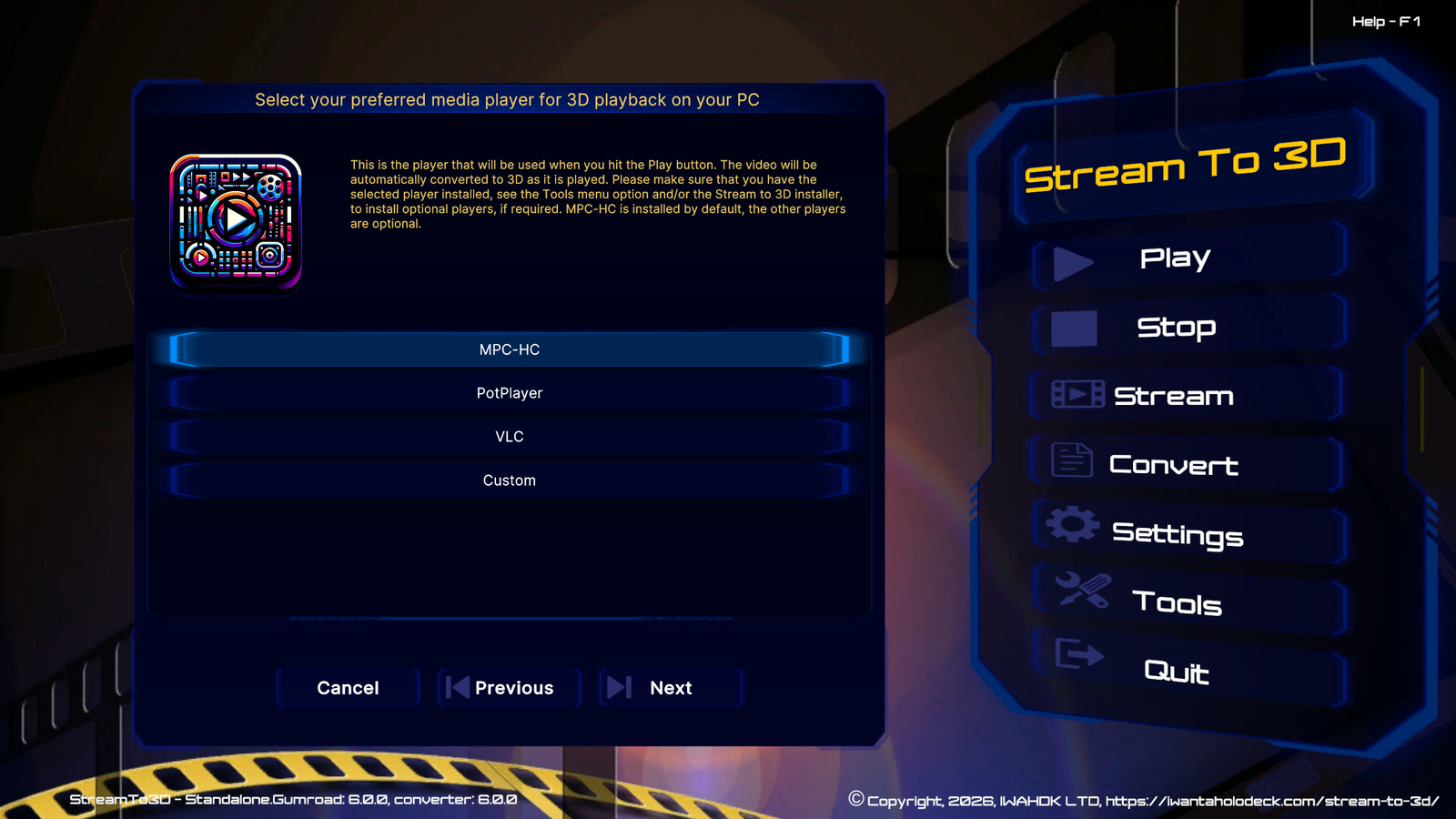

You are then prompted to select your preferred media player for 3D playback on your PC. This is the player that will be used when you hit the Play button. The video will be automatically converted to 3D as it is played. Please make sure that you have the selected player installed, see the Tools menu option and/or the Stream to 3D installer, to install optional players, if required. MPC-HC is installed by default, the other players are optional:

Next, you will be prompted to choose your preferred balance between quality and performance. You have the following options:

• Optimized Performance: Uses a 3D output format that halves the resolution of the original video and does not increase the frame rate above the sample rate.

• Balanced Quality and Performance: Attempts to retain the full resolution of the original video, but does not increase the frame rate above the sample rate.

• Maximum Quality: Attempts to retain the full resolution of the original video and also doubles the output frame rate (from the sample rate) via frame rate interpolation.

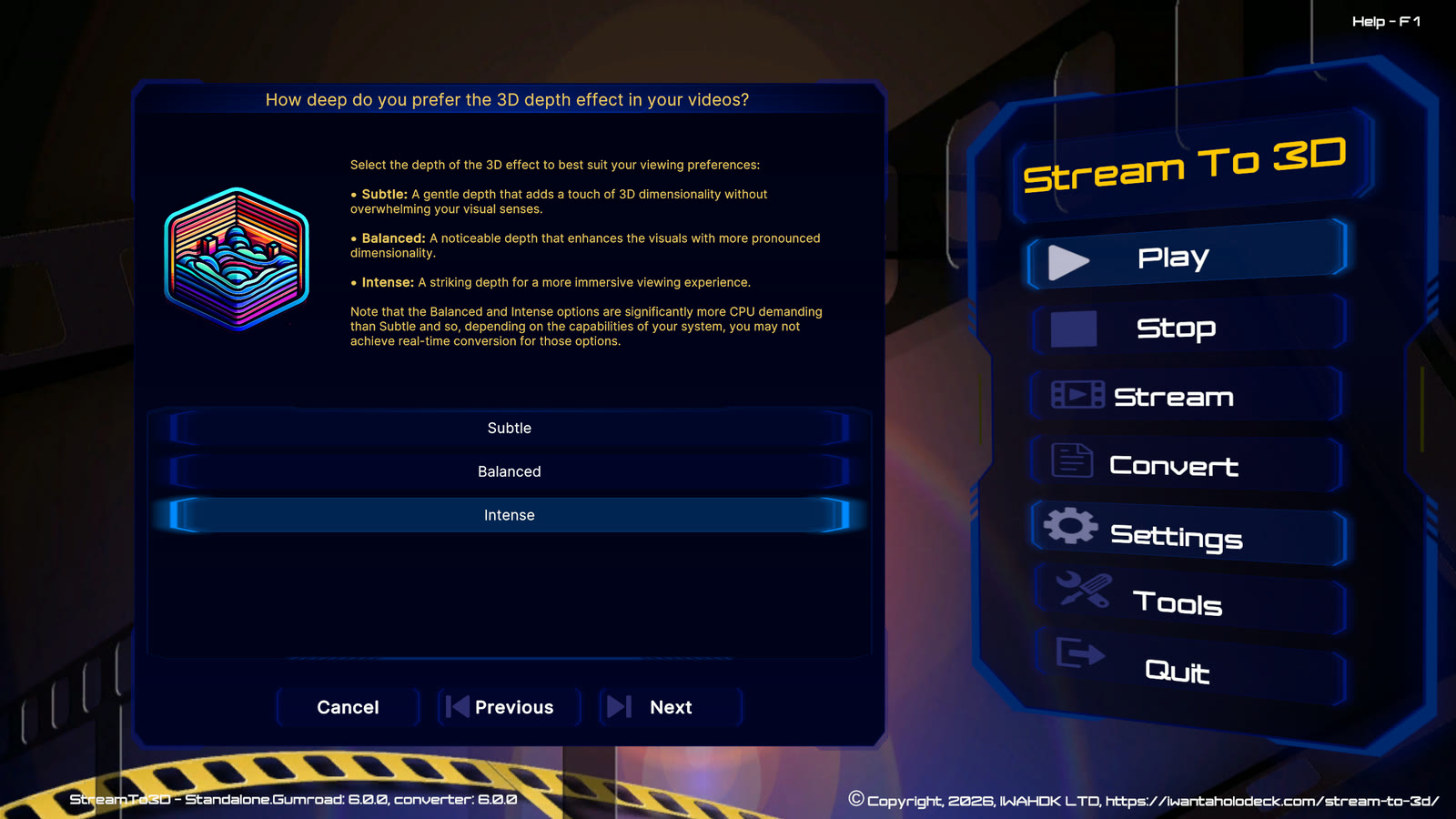

Next, you will be prompted to choose how deep you prefer the 3D depth effect to be in your videos. Select the depth of the 3D effect to best suit your viewing preferences:

• Subtle: A gentle depth that adds a touch of 3D dimensionality without overwhelming your visual senses.

• Balanced: A noticeable depth that enhances the visuals with more pronounced dimensionality.

• Intense: A striking depth for a more immersive viewing experience.

Note that the Balanced and Intense options are significantly more CPU demanding than Subtle and so, depending on the capabilities of your system, you may not achieve real-time conversion for those options.

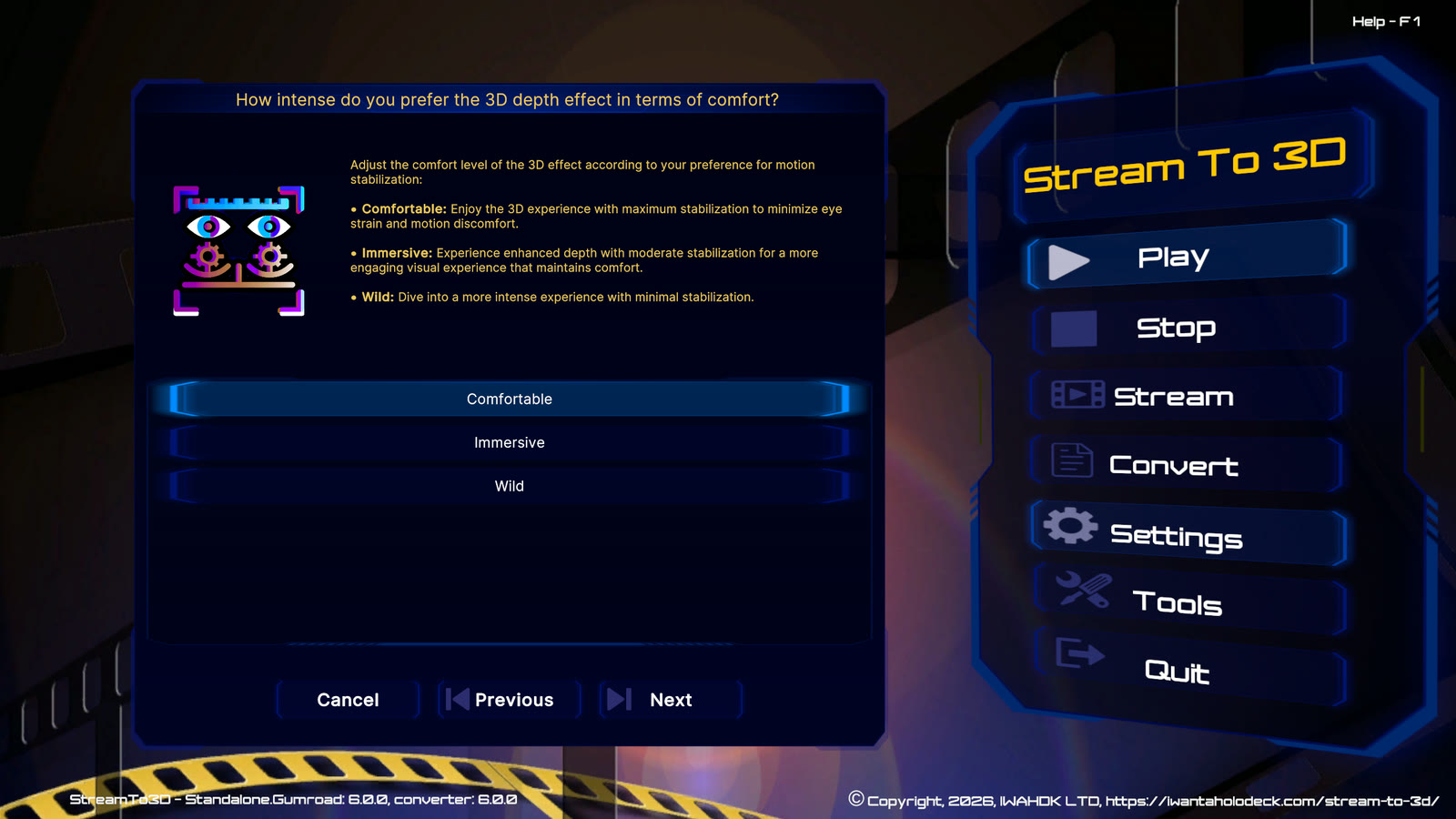

Next, you will be prompted to choose your preference in terms of the intensity of the 3D depth effect in terms of comfort. This adjusts the comfort level of the 3D effect according to your preference for motion stabilization:

• Comfortable: Enjoy the 3D experience with maximum stabilization to minimize eye strain and motion discomfort.

• Immersive: Experience enhanced depth with moderate stabilization for a more engaging visual experience that maintains comfort.

• Wild: Dive into a more intense experience with minimal stabilization.

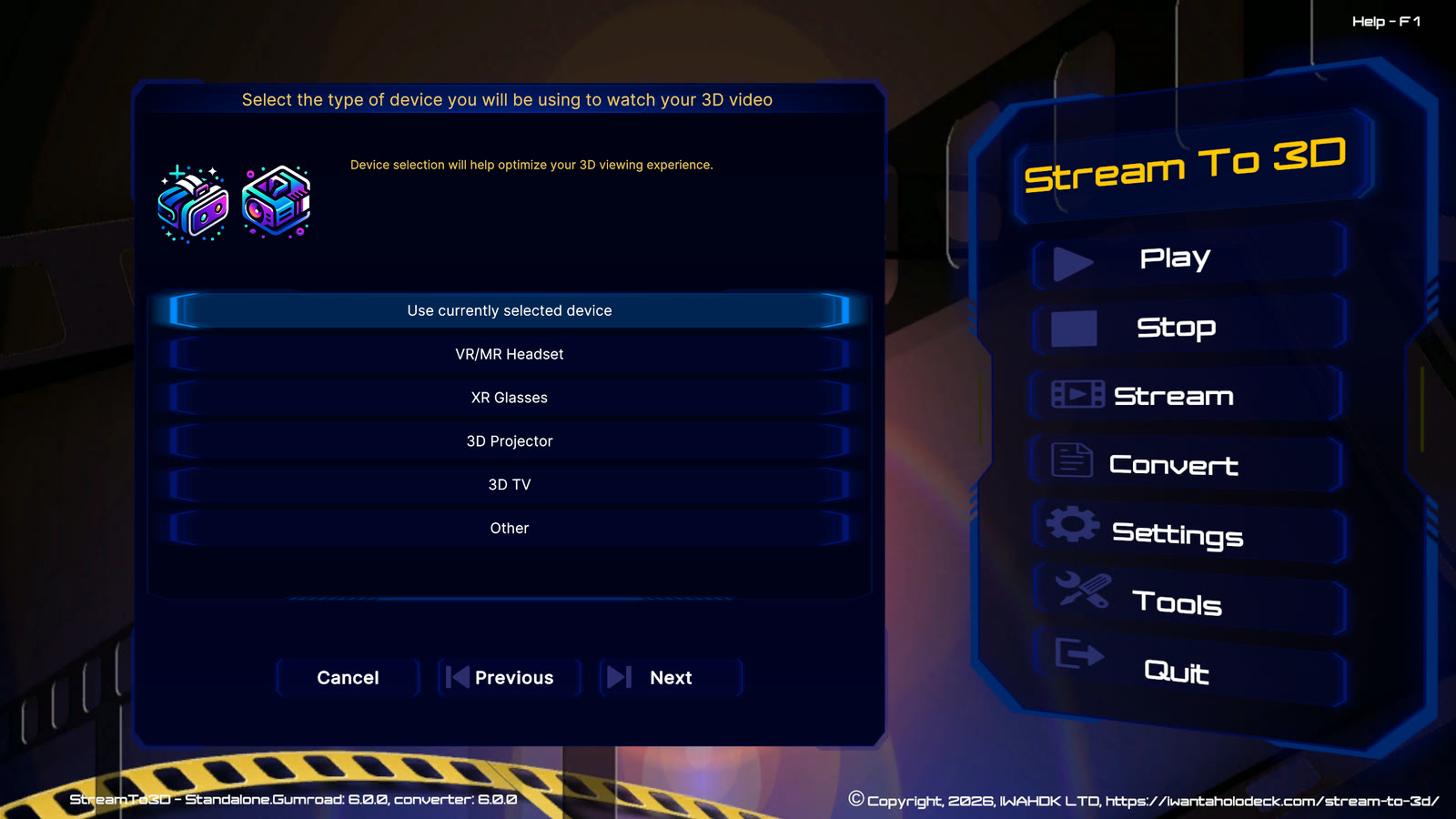

Next you will be prompted to select the type of device you will be using to watch your 3D video. Device selection will help optimize your 3D viewing experience:

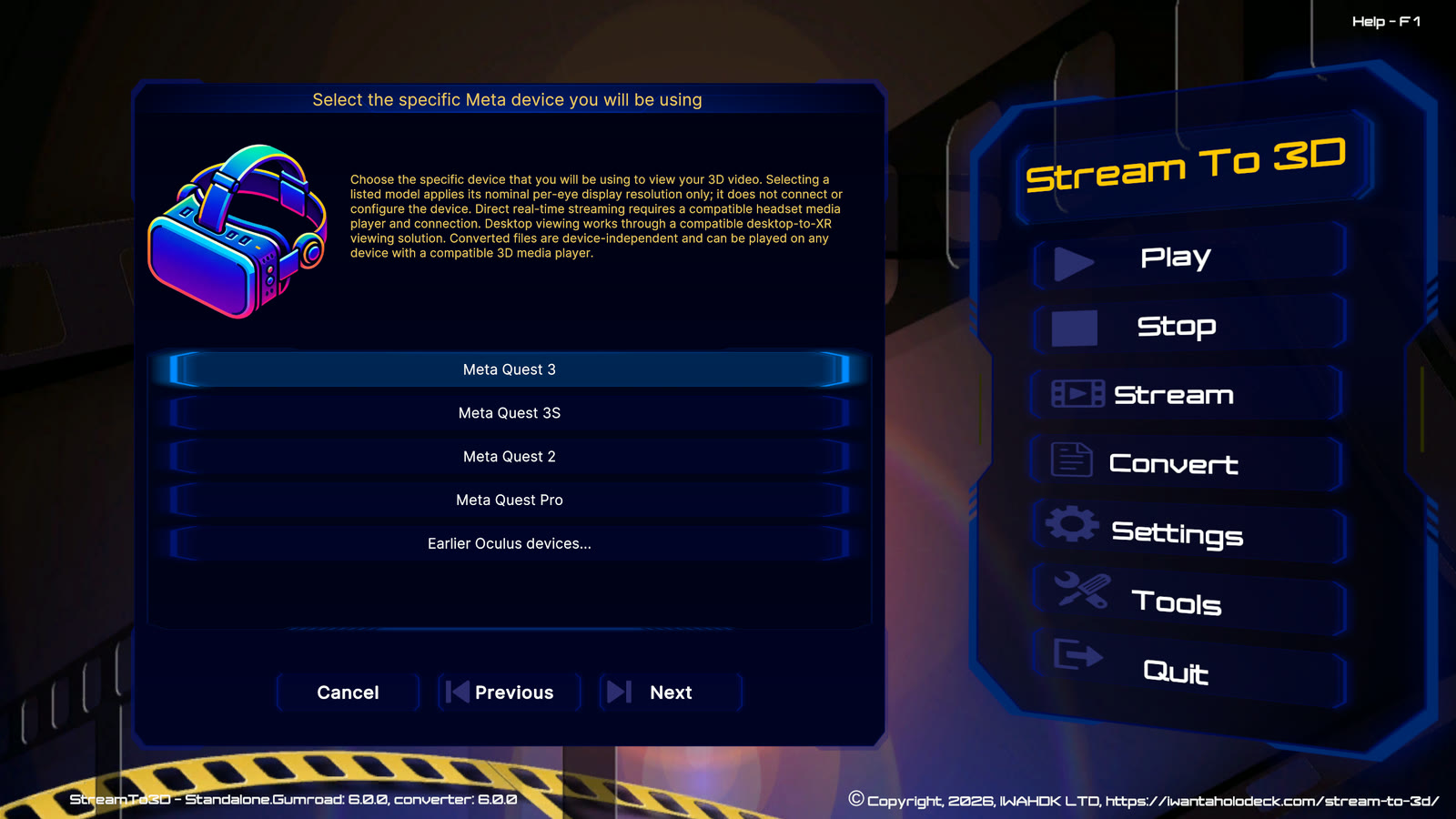

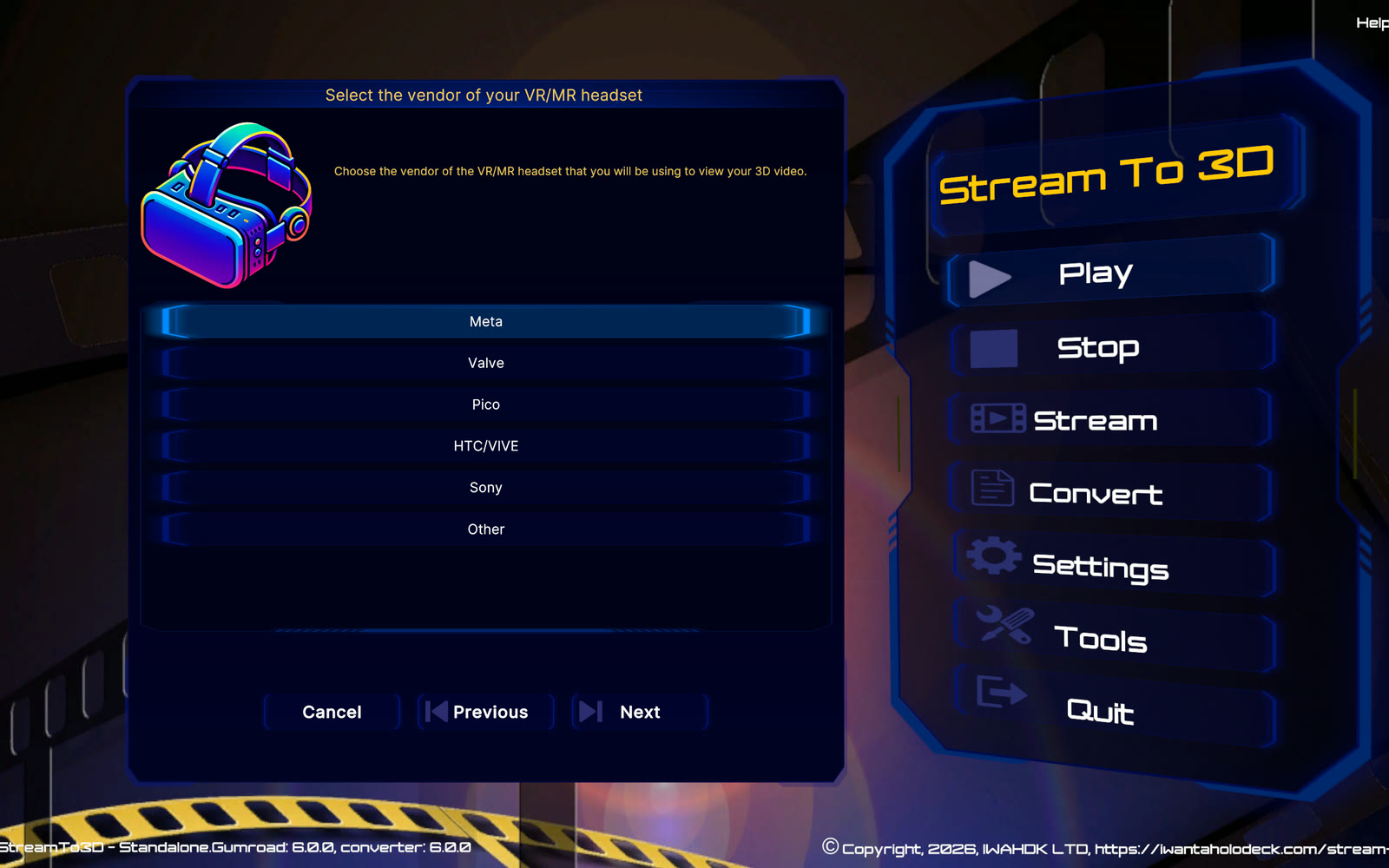

Following vendor selection based on device type, you will be prompted to select the specific device:

Next, you will be prompted on whether you would like to convert the aspect ratio of the video to 16:9 widescreen format. Converting to a 16:9 aspect ratio may be preferred for compatibility and viewer experience on devices with this fixed aspect ratio. However, it is important to consider the source material's original aspect ratio and the potential impact of conversion on the content's visual integrity and artistic intent. Your decision should balance any technical advantages with respect for the original composition of the material:

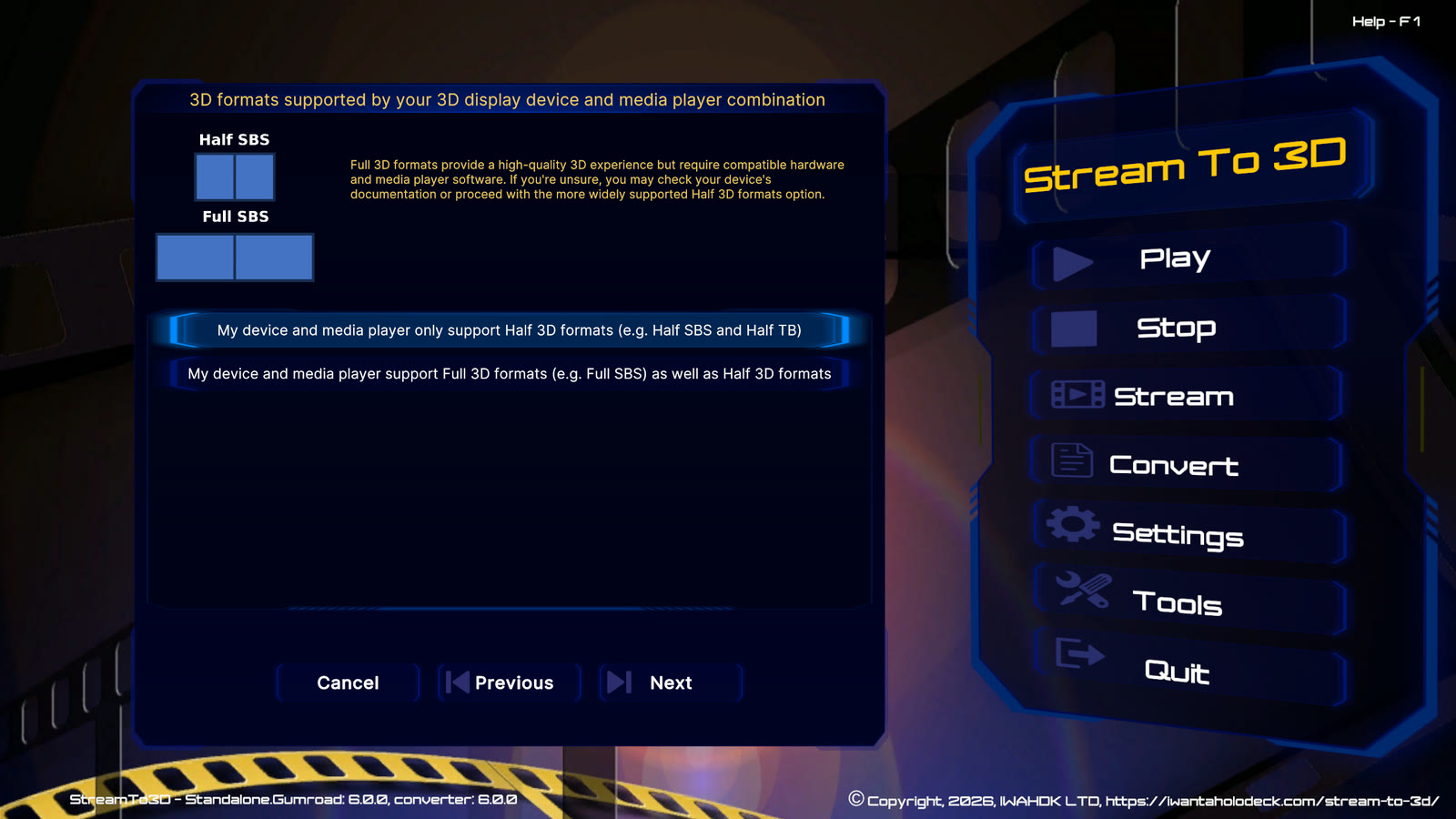

Next, you will be prompted on 3D formats supported by your 3D display device and media player combination. Full 3D formats provide a high-quality 3D experience but require compatible hardware and media player software. If you're unsure, you may check your device's documentation or proceed with the more widely supported Half 3D formats option:

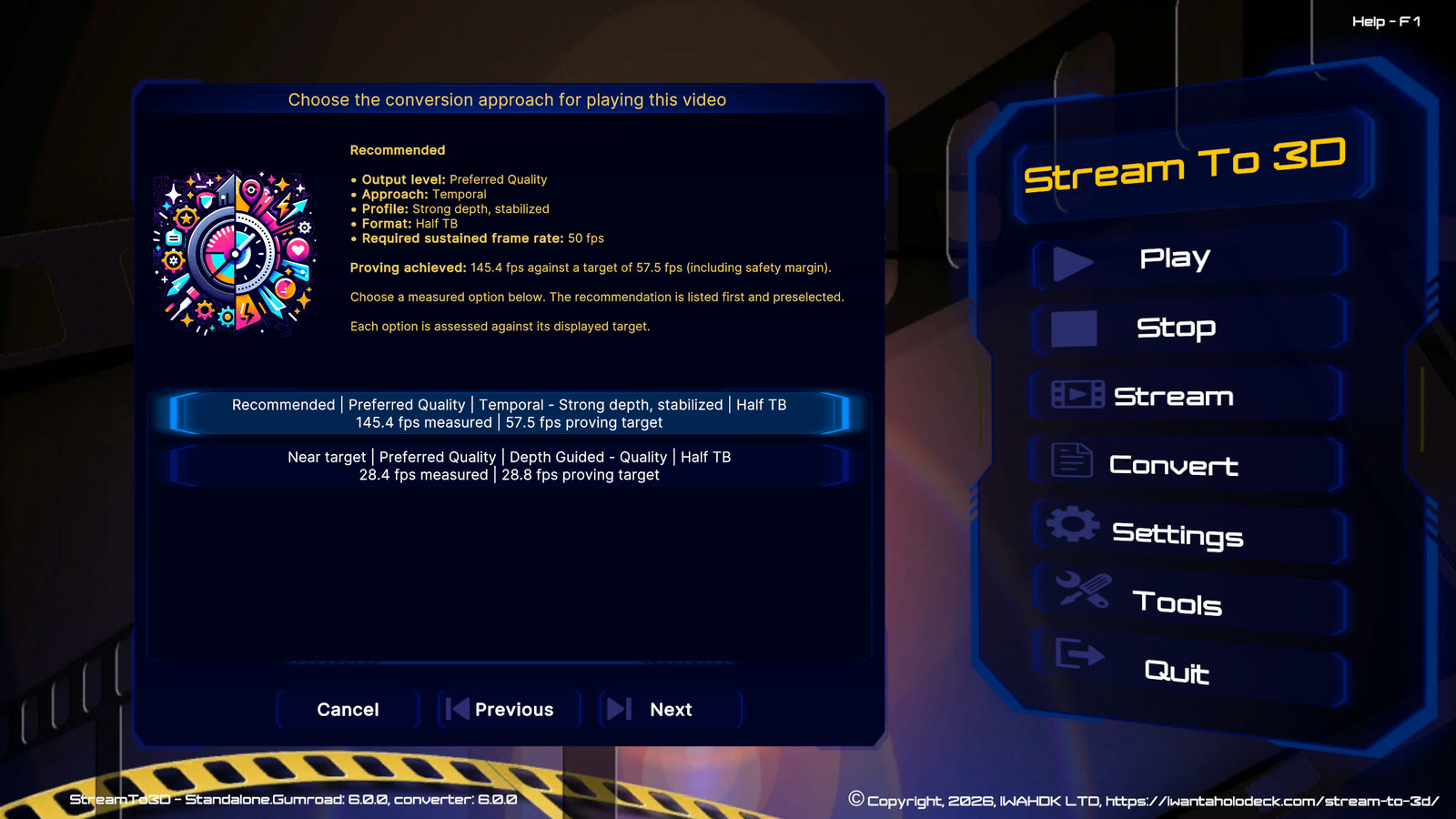

In the final step before the 3D converted video is played, the Configuration Wizard will produce a report, showing the resultant settings that will be applied and the logic for those settings. Pressing the Play button in the Configuration Wizard Report dialogue box, will play the video:

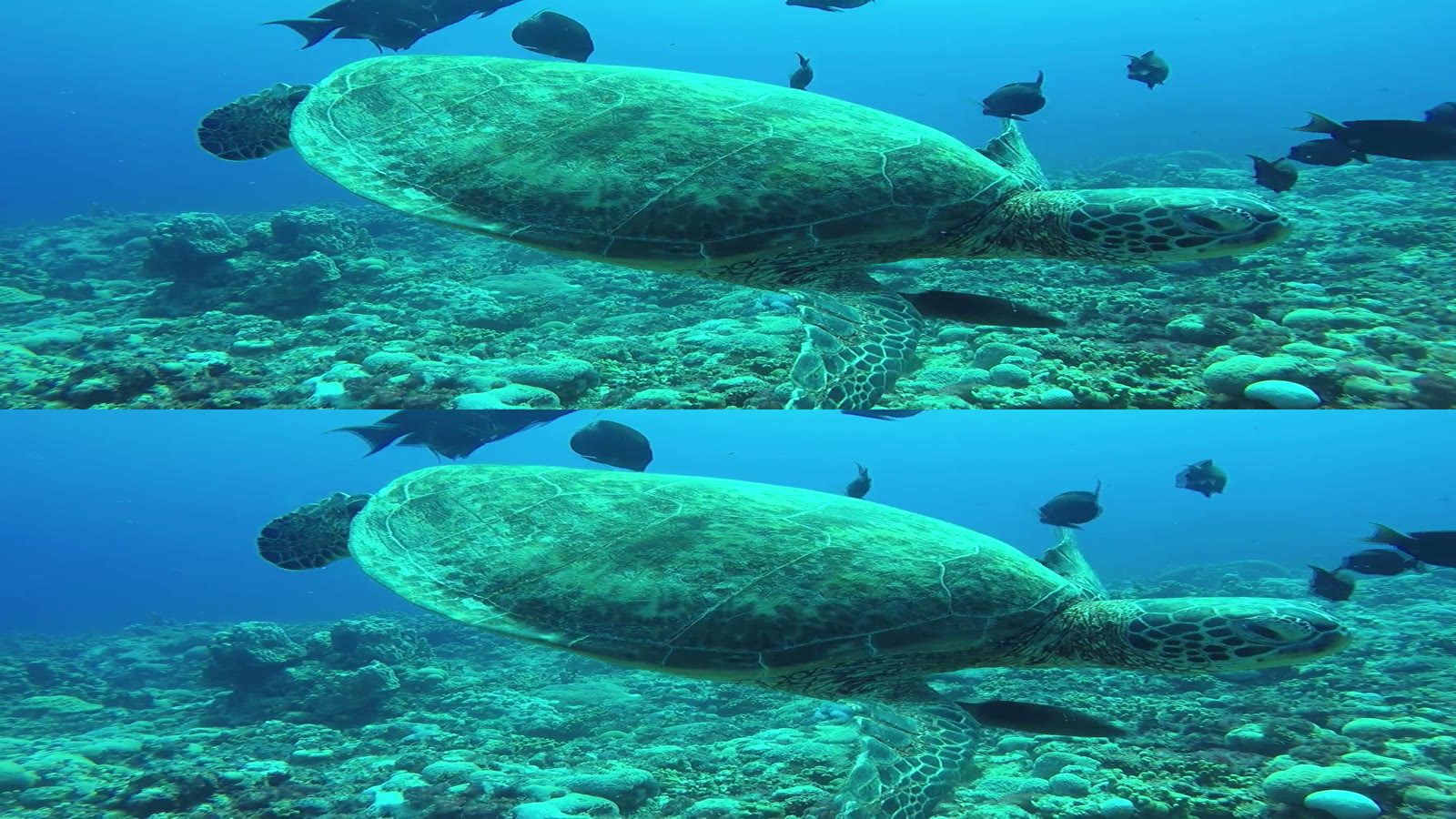

An example screen shot of the real-time converted video output result from the Wizard is shown below. Make sure that your media player is configured to display in Full Screen mode.
